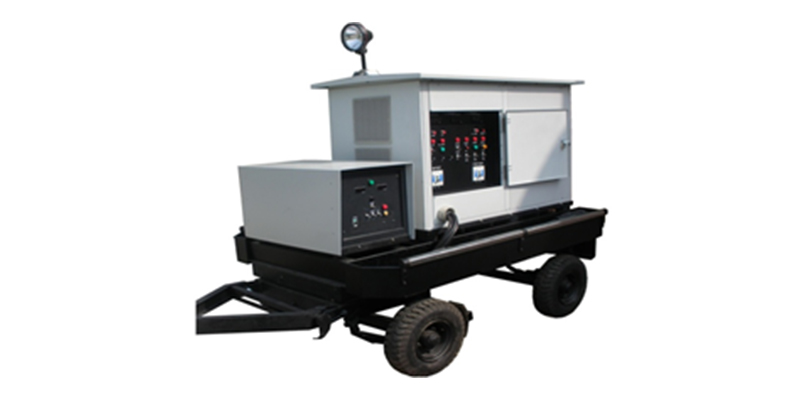

Frequency Converter Unit 60 KVA
60KVA Frequency converter Unit (FCU) can be used as a Mobile Power Source for aircraft startup and to carry out maintenance / servicing of aircraft. The FCU takes in the commercial power source input and uses solid state devices to produce the required AC and DC outputs for aircraft. Since this is our product, variants suiting the requirements can easily be provided.
AC Generating System
- Input Voltage 380VAC, 3 Phase, 50 Hz
- Output Voltage: 3 Phase 115/200 V
- Output Rated Load Capacity: 173 Amp / Phase
- Output Frequency: 400 Hz
- Power factor: 0.8
- Voltage Regulation: <0.5% for balanced load and up to 30% unbalanced load
- Voltage Recovery: ∆U <8% and rec. time <10 ms at 100% load change
- Phase Angle Symmetry: 120° ± 1° for balanced load, 120° ± 2° for 30% unbalanced load
- 28 VDC, 800Amps continuously
- 1200 A for 30 seconds
- 1800 A for 10 seconds
- 2100 A for 5 seconds
- 2400 A for 2 second
- In country spares/technical support shall be provided for next 10 years
- Comprehensive list of spares required for overhauling of FCU will be provided
DC Generating System
Spares / Technical Support:
The total weight of the FCU is around 2100kg.
