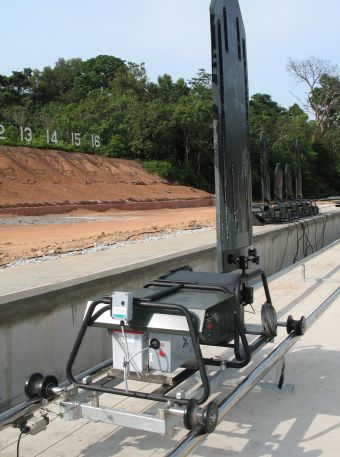

AM-40 Moving Target

AM Target system is our flagship product. It is the target system for small arms live firing exercises, applicable for various types of weapons and ammunitions such as rifles, carbines, machine guns, and pistols. The targets are computerized controlled to be raised and lowered sequentially according to pre-defined programs. Also, each target can operate as stand-alone unit.

Product Description

    • Steel movable trolley on dual rail made by stainless steel. The trolley is driven by cable and pulleys, with electrical brake.
    • Space provided on the trolley to place AM-20 popup target, or just target silhouette holder.
    • Wide range of pre-defined, user selectable running speeds.
    • Controls movement and direction via wiring from control unit.
    • Operates from AC power.
    • Trolley dimension approx. 73cm x 120cm x 15cm (29″x48″x6″) (WxLxH)
    • Rail width approx. 65cm (26″), length 18m (60′) or upon request.
    • Control mechanism approx. 75cm x 80cm x 60cm (30″x32″x24″) (WxLxH)

    Accessories

      • Trolley
      • Rail

    AM-Target systems have been in service for the Royal Thai Army and in our neighbor countries for many years now.

    Download PDF Catalogue

    Click the download button below to download complete product catalogue.

    Download PDF
